Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490

$49,800/sets 1-1 sets
Precio
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Inspección saliente por vídeo: Proporcionó
Informe de prueba de maquinaria: Proporcionó
Componentes principales: PLC, motor, rodamiento, caja de cambios, motor, engranaje
Plástico procesado: PP, HDPE, PVC, PE/PP
Lugar de origen: Jiangsu, China
brand name: DAWSON
Voltaje: 220V, 380V, 415V, 440V, etc.
dimensión (largo*ancho*alto): 3,8*2,2*2,4
Fuerza de sujeción (KN): 110
Relación L/D del tornillo: 24
Diámetro del tornillo (mm): 70
Producción (kg/h): 60
Automatización: Automático
No. de zona de calentamiento de tornillo: 3
Potencia de calentamiento del tornillo (kW): 13.8
Potencia del motor del extrusor (kW): 22
El tamaño de la placa de molde ((Ancho) ((mm)): 350
En el caso de las placas de molde, el tamaño ((Alta) ((mm)): 490
Presión de aire (MPA): 0.6
Consumo de aire (m³/min): 1.4
Potencia de calentamiento del cabezal de troquel (kW): 3
Potencia (kilovatios): 49.4
Peso (T): 6
Puntos clave de venta: Fácil de operar
Garantía: 1 año
estación: Estación Doble
Número de cabeza: 1/2/3/4
Máx. Volumen del producto: 500ml
Fijación del sistema con abrazadera: Sistema de sujeción de tipo de cambio
Material adecuado: HDPE, PP
Sistema hidráulico: Servicio hidráulico
Potencia del motor de la bomba de aceite: 11kw
Fuerza de sujeción: 110kW
Movimiento de la abertura del molde: 250-600m m
Movimiento del molde: 460 mm
Información básica
Pago y Envío Términos
Descripción de producto
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 0
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 1

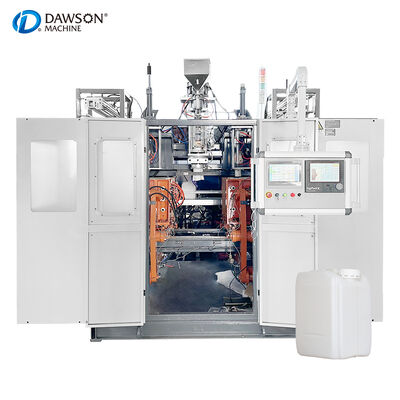

Extrusion Blow Molding Machine DSB90

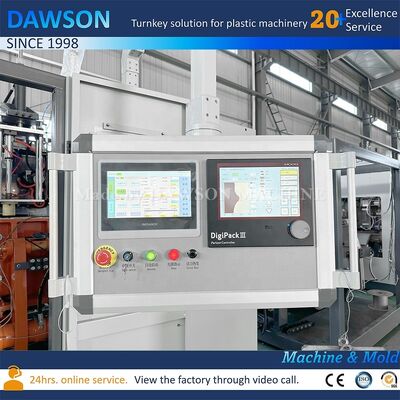

The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 2
Machine Model
Max. Bottle size
DSB90II
Bouble Station Single Head
10L
SPECIFICATIONS
UNITS
DSB90II
Station
double
Max product volume
L
10
Number of die heads
Set
1/2/3/4/6
Dry cycle
PC/H
700*2
Machine dimension (L*W*H)
M
4.4*2.2*2.7
Total weight
Ton
11
CLAMPING UNIT
Clamping force
KN
160
Platen opening stroke
mm
290-680
Platen size
mm
550*530
Max mould size (W*H)
mm
550*530
Platen moving distance
mm
620
POWER
Extrusion motor power
KW
45
Oil pump motor power
KW
18.5
Extrusion heating power
KW
16
Head heating power
KW
8-10
Total power
KW
87.5-89.5
EXTRDER UNIT
Screw diameter
mm
90
Screw L/D ratio
L/D
25
Plasticizing capacity
Kg/hour
150
Number of heating zone
Zone
4
Max die mouth diameter(single head)
mm
200


Click here to send us messages >>Send Inquiry...

Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 3
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 4
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 5
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 6
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 7
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 8
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 9
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 10
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 11
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 12
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 13
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 14
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 15
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 16

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 17
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 18
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 19
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 20
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 21
Die head number 1 2 3 4 Plastic 5L 10L Litter Liquid Canister Pesticide Bottle Blow Molding Making Machine Mold platen size 490 22

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
