Machine Model | Max. Bottle size | Production forecast | ||
ABLB90 | Double Station Single Head | 4 gallon | 200~230 BPH | |
Single Station Single Head | 4 gallon | 120~150 BPH | ||
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | ||
Max volume | 20L | |||
Output capacity | 200~230 pcs/h | |||
Size | 4.6×3×2.4(M) | |||
Weight | 8.2T | |||
system | Specification | Parameters | Note | |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature | ||
Reducer | Hard finishing,High intension,Low noise reducer | |||
Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available | ||
Plasticization | 130Kg/H | HDPE | ||
Heating Zone | 4 Aluminum Heater | Automatic heating | ||
Heating power | 8KW/H | |||
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | |||
Cooling Fan | 4zone | Automatic cooling | ||

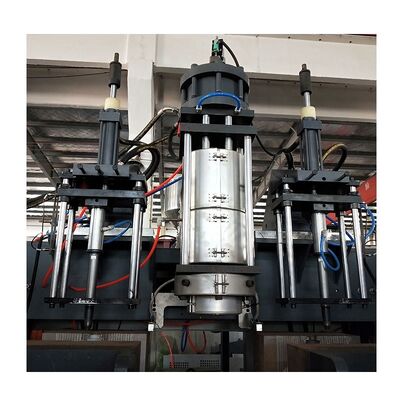

Extrusion system | Summarize | High-grade alloy steel, center feeding | ||
Die head number | 1 | |||
Center distance of die heads | / | |||
Max die mouth | ∮180mm | |||
Heating zone | 4 Stainless steel heating cycle | |||
Heating power | 5~7KW | |||

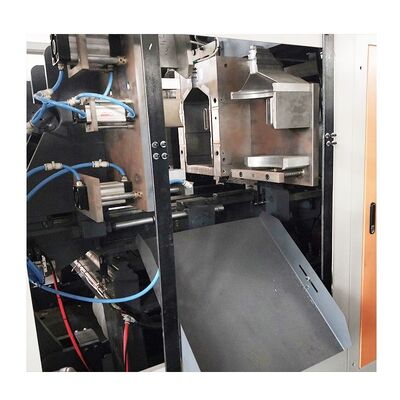

Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | ||
Clamping force | 108KN | |||
Template distance | 240~660mm | |||

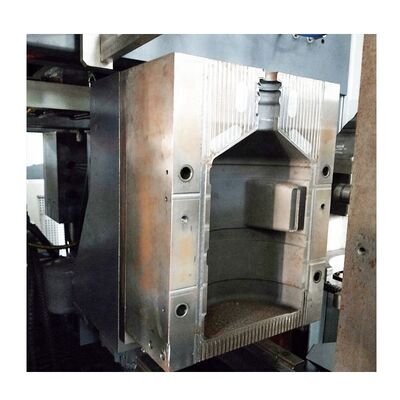

Max mould size | 530X550mm | |||
Mould material | High grade 50# steel | |||
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system | |
Operate interface | Touch screen, automatic self-diagnose alarm system | |||
Temperature control | Automatic temperature control module | |||
Movement control | Japanese Mitsubishi, Chinese/English Version | |||
Electric protection | Ampere overload, electric short circuit self-protection function | |||
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
Oil pump motor | Three phase asynchronous motor 11kw (380V/220V,50/60HZ) | |||
Oil pump | Imported double pump | |||
Valves | Imported oil pump valves and connections | |||
Oil pipes | Double layer overpressure resistant | |||
System pressure | 60Kg/cm² | |||
Cooling system | Separate water cooling cycle, oil cooler cooling system | |||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | ||
Air pressure | 0.6Mpa | |||
Air displacement | 0.9M3/min | |||
Electromagnetic valve | Taiwan AIRTAC | |||
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | ||
Cooling medium | Water | |||
Water flow | 90L/min | |||
Water pressure | 0.3-0.6MPa | |||
FAQ |
Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support! |
